Hydraulic systems are essential in many industries, from construction and manufacturing to aviation and automotive engineering. One key component in these systems is the hydraulic pump, which converts mechanical energy into hydraulic energy. Among the various types of hydraulic pumps, the hydraulic vane pump stands out for its versatility, efficiency, and smooth operation. This article provides a comprehensive and easy-to-understand explanation of how hydraulic vane pumps work, the principles behind their operation, and their practical applications in industrial settings.

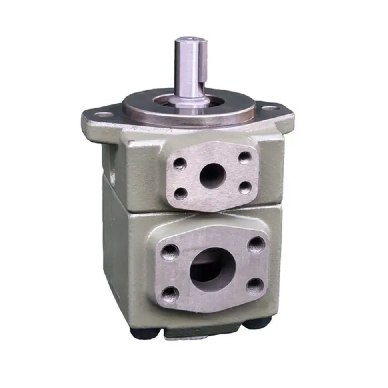

A hydraulic vane pump is a positive displacement pump that uses a series of vanes mounted on a rotor to draw in and push out hydraulic fluid. The vanes slide in and out of the rotor, maintaining contact with the inner wall of the pump housing, creating sealed chambers that move the fluid from the inlet side to the outlet side.
Vane pumps are widely used in low- to medium-pressure hydraulic applications because they offer a good balance between performance, efficiency, and noise levels. Their design allows for consistent flow and pressure control, making them suitable for various hydraulic machinery.
The working of a hydraulic vane pump is relatively straightforward but highly effective. Here's how it operates in a step-by-step manner:
Rotor Movement: The rotor, which is housed inside a cam ring, rotates due to mechanical input, usually from an electric motor or engine.
Vane Action: Several vanes are placed in radial slots on the rotor. As the rotor spins, centrifugal force (and sometimes hydraulic pressure) pushes the vanes outward, maintaining contact with the inner surface of the cam ring.
Fluid Intake: As the rotor turns, the space between the vanes increases on the intake side of the pump, creating a vacuum that draws hydraulic fluid from the reservoir into the pump chamber.
Fluid Transport: The fluid is trapped between the vanes and carried around the chamber.
Fluid Discharge: As the rotor continues to turn, the space between the vanes decreases on the outlet side, compressing the fluid and pushing it out through the discharge port into the hydraulic system.
This continuous process allows the pump to maintain a steady flow of fluid, which is necessary for the operation of hydraulic cylinders, motors, and other components.
To understand the functionality of the pump better, it’s helpful to look at its main components:
Rotor: The central rotating element that holds the vanes.
Vaned Sliders (Vaned Blades): These slide in and out of the rotor, maintaining contact with the housing to create compartments for fluid movement.
Cam Ring (Stator): The stationary component with an elliptical or circular inner surface where the vanes maintain contact.
Inlet and Outlet Ports: Allow the hydraulic fluid to enter and exit the pump.
Pump Casing (Housing): Encloses all the internal components and supports fluid containment.
Hydraulic vane pumps come in different types, depending on their design and application. Here are the most common ones:
The rotor is offset within the cam ring.
There is a pressure difference between the inlet and outlet sides.
Suitable for lower-pressure applications.
Less efficient due to higher bearing loads.
Features two inlet and two outlet sections that balance pressure on both sides of the rotor.
Reduces side loads on bearings and increases pump life.
Commonly used in high-pressure applications.
Allows the displacement (amount of fluid moved per rotation) to be adjusted.
Useful for systems that require varying flow rates.
Improves energy efficiency and system responsiveness.
Hydraulic vane pumps offer numerous benefits that make them suitable for a wide range of applications:
Due to their smooth, continuous movement, vane pumps generate less noise compared to gear or piston pumps. This makes them ideal for use in environments where noise control is important, such as in machine tools and laboratory equipment.
Vane pumps are typically smaller and lighter than other types of hydraulic pumps with similar capacities, making them easier to install in tight spaces.
The positive displacement mechanism ensures that the pump delivers a steady and predictable flow rate, which is crucial for the accurate control of hydraulic actuators and motors.
Although not as high as piston pumps in terms of maximum pressure, vane pumps provide good overall efficiency for medium-pressure systems, especially when well-maintained.
Most vane pumps are designed for easy disassembly and maintenance. Replacing worn vanes or seals is straightforward, reducing downtime and repair costs.
Hydraulic vane pumps are used in a variety of industrial and commercial applications. Here are some examples:
Industrial Machinery: Such as plastic injection molding machines, where precise flow control is essential.
Automotive Power Steering Systems: Vane pumps provide smooth steering response.
Construction Equipment: For example, skid steer loaders and small excavators.
Aviation: In aircraft hydraulic systems for operating flight controls and landing gear.
Machine Tools: To power hydraulic clamps, spindles, and coolant systems.
While vane pumps have many advantages, they also come with some limitations:
They are generally not suitable for very high-pressure applications. For pressures exceeding 3000 psi (approximately 210 bar), piston pumps are usually a better option.
Vane pumps are more sensitive to dirt or contamination in the hydraulic fluid. Foreign particles can cause vane sticking or damage the sliding surfaces, leading to premature failure.
Since vanes are constantly sliding in and out and making contact with the pump housing, they are subject to wear. Proper lubrication and clean fluid are essential to prolong their lifespan.
To keep a hydraulic vane pump running smoothly and extend its operational life, the following maintenance practices are recommended:
Use Clean Hydraulic Fluid: Always filter fluid before it enters the system and conduct regular oil analysis.
Monitor for Leaks and Noise: Unusual sounds or visible leaks often indicate wear or component failure.
Replace Worn Vanes Promptly: Worn vanes can reduce efficiency and cause internal damage.
Check Shaft Seals: Damaged seals can allow fluid leakage and contamination.
Follow Manufacturer Guidelines: Use the recommended oil types, pressures, and flow rates.
With the advancement in hydraulic technology, modern vane pumps are more durable and efficient than ever. Some of the innovations include:
Advanced Composite Vanes: These reduce wear and improve performance.
Noise Reduction Technologies: Modern designs incorporate noise-dampening features to make them even quieter.
Energy-Efficient Designs: Newer models, especially variable displacement pumps, are designed to reduce energy consumption.
Smart Monitoring Systems: Some high-end systems include sensors that monitor temperature, pressure, and flow, helping predict maintenance needs and reduce downtime.
Hydraulic vane pumps are an essential component in many hydraulic systems, offering reliable performance, quiet operation, and efficient flow control. Their unique design allows for consistent pressure and flow, making them suitable for a wide range of industrial, automotive, and aerospace applications.
Understanding how these pumps work, recognizing their strengths and limitations, and maintaining them properly can ensure long-term performance and reduce system downtime. Whether you're designing a new hydraulic system or maintaining an existing one, a solid grasp of hydraulic vane pump principles can help you make better choices and optimize system efficiency.
By applying this knowledge, engineers, technicians, and operators can confidently select and care for hydraulic vane pumps to ensure smooth and reliable system operation for years to come.
