T6CC
Denison
| Product Introduction

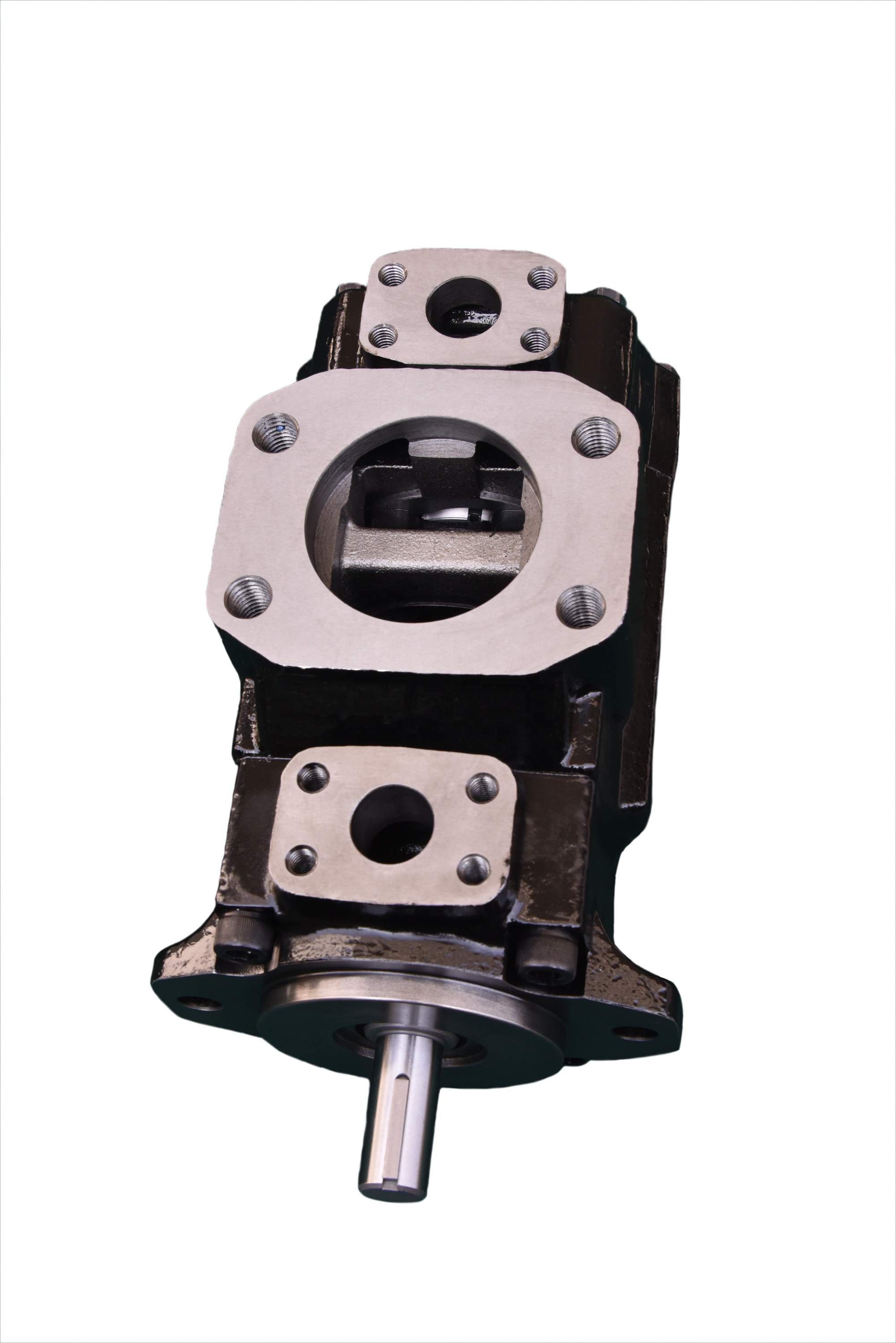

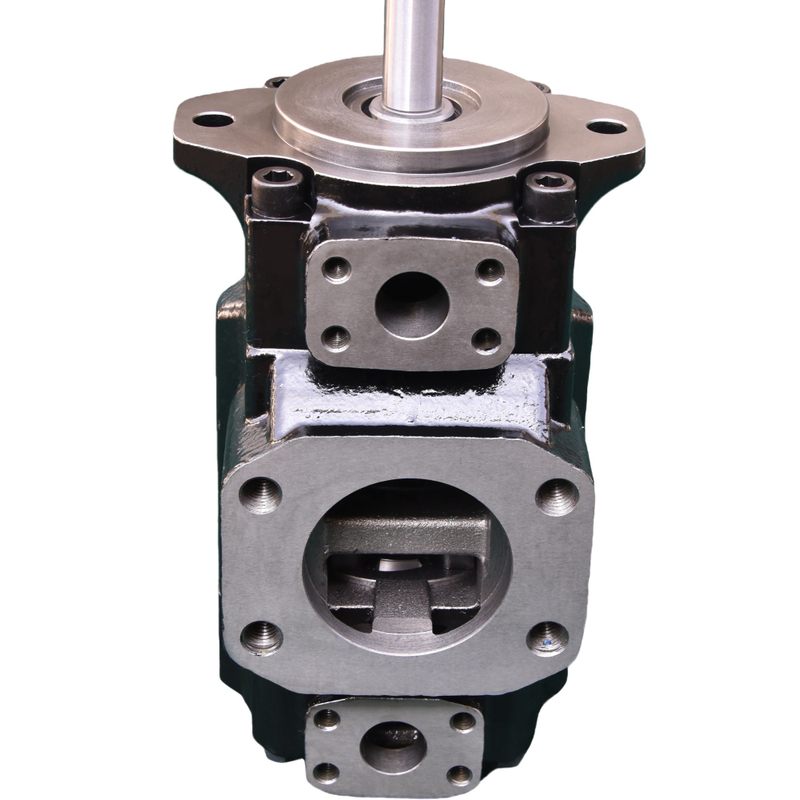

The T6CC-003-005-1R00-A5 is a dual hydraulic vane pump engineered for high-pressure operations (≤300 bar). Designed for industrial machinery including metal forming equipment, plastic injection molders, stamping presses, and die casters, its modular cartridge system integrates:
Rotor & cam ring
Double-lip vane kits
Balancing plates
Configurable cartridges enable dual operating modes:
• High-pressure/low-flow (300 bar max)
• High-flow/low-pressure
This flexibility optimizes hydraulic circuit design. Additional features include rapid pressure cycling and ±0.5% flow repeatability, making it particularly suited for press applications.
| Packaging And Delivery
Your Brand, Your Way
✓ Default "KST" marking ✓ Custom branding options
Smart Packaging
✓ Wooden crates with shock-absorbent foam
✓ Need different packaging? Just ask!
Worldwide Shipping
|SPECIFICATION
A double or triple pump combines two or three cartridge kits. To calculate its displacement, simply add the displacement values of the individual cartridges. For instance, the T6CC-003-005 model integrates a 003 cartridge with a 005 cartridge. According to the Excel sheet, its displacement is the sum of 10.8 mL/r and 17.2 mL/r, resulting in 28.0 mL/r.
| Series | Flow code | Geometric displacement(mL/r) | Max pressure MPa | Max speed | ||||
| Antiwear hydraulic oil | General hydraulic oil&phosphate eater fluid | General&hydraulic oil | Water glycol&phospahate easter fluid or water-oil emulsions | |||||
| Instant | Continuous | Instant | Continuous | |||||
| T6CC | 003 | 10.8 | 28 | 24.5 | 21 | 17.5 | 2800 | 1800 |
| 005 | 17.2 | |||||||
| 006 | 21.3 | |||||||
| 008 | 26.4 | |||||||
| 010 | 34.1 | |||||||
| 012 | 37.1 | |||||||
| 014 | 46.0 | |||||||
| 017 | 58.3 | |||||||
| 020 | 63.8 | |||||||
| 022 | 70.3 | |||||||
| 025 | 79.3 | 2500 | ||||||
| 028 | 88.8 | 21 | 16 | 16 | ||||
| 031 | 100.0 | |||||||
|SPECIFICATION
| T6CC | -003 | -005 | -1 | R | 02 | -C | 1 | 10 |
| Series | Flow-shaft end pump | Flow-cover end pump | Shaft type | Rotation | Port position | Design No. | Sealing level | Port dimensions |
| T6CC | 03、05、06、08、10、12、14、17、20、22、25、28、31 | 03、05、06、08、10、12、14、17、20、22、25、28、31 | See of shaft | R-clockwise L-counter clockwise | See pictures below | C | 1-S1 NBR Nitrile rubber 5-S5 Fluororubber | 00、01、10、11 see installation dimensions |
| Port positions
| About us
Please find our documentary.
| Q&A
Q: Minimum Order Quantity?
A: Single-unit procurement enabled - Including accelerated life testing orders.
Q2: Production Lead Time?
A:Stock models: 2-5 business days (bonded warehouse dispatch);Custom solutions: 5-10 days (includes 72-hr endurance validation)
Q3: OEM/ODM Capability Depth?
A: Full spectrum re-engineering to choose
Q4: Configuration Assurance?
A: Utilize our digital twin system: Input viscosity/cycle/temperature → Receive anti-cavitation protocols.
Q5: Certification Level?
A: ISO9001 certificate
