Hydraulic systems are the backbone of many industrial and mechanical operations, from automated machinery and manufacturing equipment to construction tools and transportation systems. One of the most critical components in any hydraulic system is the pump. Among the various types of hydraulic pumps available, vane pumps have earned a reputation for being efficient, reliable, and relatively quiet. However, choosing the right hydraulic vane pump for a specific application requires careful consideration of several factors, including operating conditions, system requirements, and performance expectations.
This article provides a detailed and easy-to-understand guide to help you select the most suitable hydraulic vane pump for your needs. It explains how vane pumps work, what key parameters to evaluate, and how to match a pump’s capabilities to the demands of your specific application.

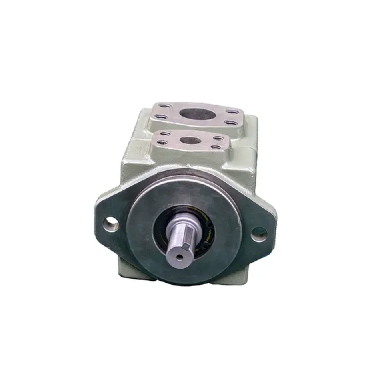

A hydraulic vane pump is a positive displacement pump that uses a series of vanes mounted on a rotor. These vanes slide in and out of slots as the rotor spins inside an eccentrically shaped housing. The motion creates expanding and contracting chambers that draw hydraulic fluid in from the inlet port and force it out through the outlet port.
The compact and sealed nature of this mechanism allows vane pumps to deliver a consistent flow of fluid with minimal pulsation. This makes them especially effective in medium-pressure hydraulic systems requiring smooth and controlled movement. Vane pumps are widely used in applications such as plastic injection molding machines, material handling equipment, automotive systems, and factory automation.
Selecting the right vane pump is not just about picking the correct size or power. A wide range of variables affect a pump's performance and suitability for a particular system. Let’s explore the key considerations that will guide you toward making the best choice.
The first thing to consider is the operating pressure of your hydraulic system. Hydraulic vane pumps are typically suited for medium-pressure applications, often handling pressures up to 200 bar (about 3,000 psi). While they are not usually chosen for high-pressure applications, many modern vane pumps are designed with reinforced housings and advanced materials to handle higher loads.
Before selecting a pump, review the pressure specifications of your system and ensure the pump’s rated pressure matches or exceeds this value. Using a pump at pressures beyond its design can lead to overheating, internal leakage, and premature failure.
The flow rate refers to the volume of hydraulic fluid the pump must deliver per unit of time. It is typically measured in liters per minute (L/min) or gallons per minute (GPM). Your system’s actuators and components—such as cylinders and motors—require a specific flow to function effectively.
If your application involves fast-moving machinery or requires a high volume of fluid movement, you’ll need a vane pump capable of meeting that demand. Undersized pumps can lead to performance issues, while oversized pumps can result in wasted energy and overheating.
Another important factor is the type of hydraulic fluid your system uses. Hydraulic vane pumps are generally compatible with a wide range of fluids, including mineral oils, synthetic oils, and some biodegradable fluids. However, compatibility with water-based or aggressive chemical fluids may require special seals and materials.
Before selecting a pump, confirm that its seals, gaskets, and internal surfaces are suited for the fluid in your application. Using the wrong materials can cause seal degradation, corrosion, and fluid leakage.
Your operating environment plays a significant role in determining pump performance and durability. Vane pumps are sensitive to extreme temperatures, especially at the seal points. In cold environments, fluid viscosity can increase, making it harder for the pump to start or maintain flow. In high-temperature settings, thermal expansion may cause parts to wear more quickly.
Additionally, if your equipment operates in a dusty, wet, or outdoor setting, consider selecting a pump with protective coatings or an enclosed design to prevent contamination and environmental damage.
The duty cycle refers to how often and how long the pump will be running. Is the system operating intermittently, or does it run continuously for long hours? Vane pumps are generally more efficient in systems with moderate and continuous workloads. For intermittent or low-duty operations, simpler pump types might suffice, but for continuous usage, choose a vane pump built with high wear-resistance components and superior thermal management.
Pump speed also influences performance. Most vane pumps operate efficiently within a specific RPM range. Exceeding this range can result in cavitation or internal damage. Make sure your system’s motor or power source can drive the pump at optimal speed.
If your application is located in an indoor or noise-sensitive environment, such as a laboratory, production line, or commercial space, noise output becomes a key factor. Vane pumps are naturally quieter than gear or piston pumps due to their smooth operation and balanced design. Nevertheless, choosing a model specifically built with noise-reduction features—such as double-lip vanes or noise-dampening housings—can significantly improve working conditions.
Vane pumps come in various shapes and mounting configurations. Depending on your available installation space, you may need a compact or flange-mounted model. Also, check the orientation of inlet and outlet ports, as some configurations can reduce the complexity of piping and make maintenance more convenient.
Every pump requires routine maintenance to ensure long-term reliability. When selecting a vane pump, consider how easy it is to access internal components like vanes, seals, and bearings. Some manufacturers design pumps with modular components or cartridge-style construction, making disassembly and servicing much quicker.
Also, evaluate the availability of spare parts. Pumps from well-established manufacturers often come with better aftermarket support, documentation, and replacement part availability.
Depending on your application's nature, you might need a specific type of vane pump. There are three main categories commonly used in industry:
Fixed displacement pumps deliver a constant flow rate for every rotation of the shaft. These are ideal for systems with consistent operational demands. They’re simple in design, cost-effective, and easy to maintain. Applications include general industrial machinery, conveyors, and cooling systems.
Variable displacement pumps can adjust their flow rate based on system pressure or user settings. This allows for energy-saving operation and reduced wear. They are suitable for more complex systems like CNC machines, plastic molding, and hydraulic presses where varying flow is needed throughout the cycle.
These are designed for easy serviceability. Instead of replacing the entire pump, the internal cartridge containing vanes, rotor, and cam ring can be replaced as a unit. This significantly reduces downtime during maintenance. Such designs are common in factory automation and systems requiring minimal interruptions.
To summarize the selection process, here’s a straightforward approach:
Analyze your system: Determine pressure, flow rate, fluid type, and operating environment.
Identify application needs: Consider whether the system is continuous, variable, or intermittent in nature.
Select the pump type: Decide between fixed, variable, or cartridge-style pumps based on your requirements.
Match specifications: Choose a model with suitable ratings for pressure, speed, and temperature.
Evaluate installation: Check space availability, mounting options, and ease of maintenance.
Choose a reliable supplier: Work with manufacturers that offer proven products, technical support, and replacement parts.
Selecting the right hydraulic vane pump requires a thorough understanding of both your system’s needs and the capabilities of different pump designs. By carefully evaluating pressure, flow, environmental conditions, and operational cycles, you can ensure that your hydraulic system performs smoothly, efficiently, and reliably. Vane pumps are a versatile and well-balanced choice for many industrial applications, especially when consistent performance and quiet operation are priorities.
