Hydraulic systems power a wide variety of industrial machinery, from injection molding machines and CNC tools to agricultural equipment and construction vehicles. These systems rely on efficient pumps to generate the hydraulic flow and pressure necessary for motion, force, and control. One of the most effective options in this domain is the double vane pump. While single vane pumps have long been favored for their simplicity and low noise, double vane pumps offer a significant leap forward in terms of efficiency, performance, and flexibility.
This article will explore how double vane pumps improve the efficiency of hydraulic systems. We’ll look at their internal structure, operating principles, and how their specific advantages contribute to better energy use, reduced maintenance, and increased system performance.

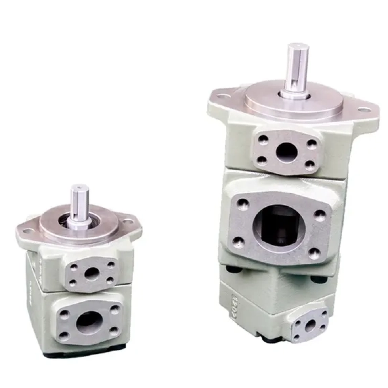

Double vane pumps are a specialized type of positive displacement pump. At their core, they feature two vane pumping chambers, typically positioned on either side of a central drive shaft within a single housing. Each side of the pump includes a rotor with radially sliding vanes that move in and out as the rotor spins inside a cam ring. The eccentric shape of the cam ring creates cavities between vanes, allowing fluid to be drawn in on one side and expelled on the other.
In double vane pumps, both chambers operate simultaneously. The two working sections may either combine to produce a higher flow rate or be used independently to serve different circuits. This dual-chamber design forms the foundation for their superior performance in hydraulic systems.
One of the most direct ways double vane pumps improve system efficiency is through their increased flow output within a compact design. Instead of requiring two separate pumps to achieve high flow, a double vane pump provides nearly double the output of a single vane pump in a single unit. This means:
Reduced space requirements: Ideal for equipment with tight space constraints.
Simplified installations: Fewer mounting components and plumbing connections.
Lower system complexity: One unit can do the work of two pumps, reducing design overhead.
By delivering more fluid per rotation, double vane pumps minimize the load on the motor and shorten the time it takes to perform hydraulic actions, which contributes directly to improved cycle times and productivity.
Flow stability is crucial for precision machinery. Uneven flow can lead to jerky movements, control issues, and mechanical wear. Because double vane pumps operate with two chambers working together, the pressure and flow they generate are more consistent than those of single-chamber pumps.
This benefit becomes especially important in applications like:
Machining operations requiring exact positioning and feed rates
Robotics, where accuracy is critical to performance
Plastic molding, where smooth transitions between injection and clamping are needed
In these systems, balanced output helps prevent pressure surges and hydraulic shock, improving not only efficiency but also equipment lifespan.
Double vane pumps also enhance hydraulic system efficiency by addressing a frequently overlooked aspect—noise. Excessive noise in hydraulic systems can be a sign of vibration, cavitation, or internal leakage, all of which indicate inefficient operation.
Due to the balanced nature of their operation, double vane pumps produce less noise and vibration than other pump types, including single vane or gear pumps. The two pumping chambers work in tandem to cancel out pulsations, resulting in quieter operation.
This low-noise feature benefits:
Factory environments, where quieter machines reduce operator fatigue
Mobile equipment, where space is limited and operator comfort is key
Medical or laboratory devices, which must operate in low-noise environments
Quiet operation is not just about comfort—it’s a sign that energy is being used more efficiently and that mechanical wear is being minimized.
Efficiency in hydraulic systems isn’t only about flow rate—it’s also about how that flow is used. In complex systems that require multiple hydraulic functions at different pressures or flow levels, double vane pumps offer a valuable feature: dual-circuit operation.
Each of the two chambers in a double vane pump can be connected to a separate hydraulic circuit. This allows one pump to power two different subsystems, such as:
Lifting and steering systems in material-handling equipment
Clamping and ejection systems in injection molding machines
Feed and return functions in CNC lathes
This dual functionality reduces the need for additional pumps, motors, and control devices. It simplifies the overall hydraulic design, lowers energy consumption, and improves the coordination of hydraulic tasks—all of which contribute to higher system efficiency.
Efficiency in hydraulic systems is often measured by volumetric efficiency (how much fluid is delivered vs. the theoretical maximum) and mechanical efficiency (how much input power is converted into hydraulic power).
Double vane pumps score well in both metrics due to their:
Tight internal clearances: Reduces internal leakage
Symmetrical design: Balances internal forces
Low-friction vane movement: Minimizes energy loss
These design features help reduce waste in the form of heat, noise, and fluid loss. In turn, this means less energy is required to achieve the same hydraulic output, leading to lower operational costs and longer component life.
Maintenance is another area where double vane pumps shine. Since both chambers are built into a single housing, the number of external seals, fittings, and moving parts is reduced compared to using two single pumps. Additionally, many double vane pumps are designed with modular cartridges that can be easily replaced without dismantling the entire pump.
This modular construction leads to:
Faster service times
Less unplanned downtime
Lower long-term maintenance costs
When machines are easier to service, maintenance is more likely to be done on schedule, preserving the overall efficiency of the hydraulic system and reducing the risk of costly breakdowns.
Perhaps the most tangible advantage of using double vane pumps is their contribution to energy savings over time. Since the pump can deliver higher flow rates with less input power, the demand on electric motors or combustion engines is reduced. This leads to:
Lower energy bills
Smaller motor requirements
Reduced carbon footprint
In applications where equipment operates continuously or for long shifts, these savings can be substantial. Additionally, because double vane pumps allow two circuits to be powered from one motor, total energy use is optimized, enhancing overall system sustainability.
To understand their efficiency impact, let’s consider where double vane pumps are commonly used:
Manufacturing lines: Used in presses and automated tools requiring fast and synchronized hydraulic movements.
Construction machinery: Equipment such as excavators and loaders benefit from simultaneous control of multiple functions.
Packaging systems: Require fast and smooth hydraulic actions for cutting, sealing, or forming.
Machine tools: Double vane pumps can control feed, return, and clamping in one system without sacrificing performance.
In all these cases, the efficiency gains from improved flow, quieter operation, dual-circuit capability, and low energy use result in higher productivity and reliability.
Double vane pumps are a highly efficient solution for modern hydraulic systems. They offer high flow rates in a compact design, provide smoother operation, support dual-circuit functions, and reduce noise and vibration. Their user-friendly, modular construction also makes maintenance easier and more cost-effective. These combined advantages help lower energy consumption, improve system performance, and reduce long-term operating costs.
For businesses aiming to build or upgrade hydraulic systems with long-lasting efficiency in mind, double vane pumps are a smart investment. Zhejiang Keister Hydraulic Co., Ltd. provides a wide range of reliable, high-performance double vane pumps. Known for their technical expertise, precision engineering, and strong customer support, Keister Hydraulic is a trusted partner for efficient and durable hydraulic solutions.
