Hydraulic systems play a vital role in powering industrial machinery, heavy equipment, and automated systems. At the heart of every hydraulic system is the hydraulic pump, which is responsible for converting mechanical energy into hydraulic energy by moving fluid through the system. Among the various types of hydraulic pumps available, vane pumps, gear pumps, and piston pumps are the most commonly used. Each pump type has its own unique characteristics, making it more suitable for specific applications depending on the required pressure, flow rate, efficiency, and environmental conditions.
This article offers a comprehensive comparison between hydraulic vane pumps and other common types of hydraulic pumps. It examines the operating principles, advantages, and limitations of each type to help users understand which pump best suits different fluid power needs.

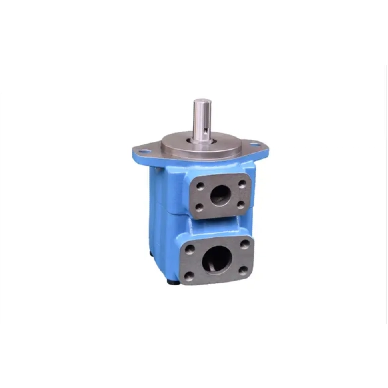

Hydraulic vane pumps are positive displacement pumps that use a rotor with slots that hold sliding vanes. As the rotor spins within an eccentric housing, the vanes extend and retract due to centrifugal force or spring tension. This creates sealed chambers that carry hydraulic fluid from the inlet to the outlet, generating pressure and flow.
Vane pumps are known for their ability to deliver smooth, pulse-free flow and operate quietly. Their design allows for moderate pressure output, typically up to 200 bar (around 3,000 psi), and they are particularly effective in applications requiring consistent performance and reduced noise, such as in plastic injection molding, automotive assembly, and CNC machinery.
Hydraulic gear pumps are among the oldest and most widely used pump types. They operate using two intermeshing gears—one driving and one driven. As the gears rotate, fluid is trapped in the gear teeth cavities and moved from the inlet to the outlet. Gear pumps are generally categorized into external and internal gear pumps, both of which are used in different industrial applications.
Compared to vane pumps, gear pumps are simpler in design and construction, which makes them highly reliable and easy to maintain. They are also more tolerant of contamination due to their rugged design. However, gear pumps produce more noise, and their flow is less smooth, with slight pulsations that can affect precision in sensitive systems. Gear pumps also tend to have lower volumetric efficiency at high pressures and may wear more quickly if used in continuous-duty high-pressure environments.
Key comparison points:
Noise level: Vane pumps are quieter than gear pumps.
Flow smoothness: Vane pumps provide steadier flow with less pulsation.
Durability in harsh environments: Gear pumps are more resistant to fluid contamination.
Pressure capability: Gear pumps typically handle up to 250 bar, similar to vane pumps, but may lose efficiency faster at higher pressures.
Hydraulic piston pumps are more complex and powerful than both gear and vane pumps. They use a series of pistons inside a cylinder block to displace hydraulic fluid. Depending on their design, piston pumps can be axial or radial in configuration. These pumps can generate much higher pressures, often exceeding 400 bar (over 5,800 psi), making them ideal for heavy-duty applications.
Piston pumps are also capable of variable displacement, allowing them to adjust fluid output based on system demand. This makes them highly energy efficient in systems that require fluctuating flow rates or pressures. However, piston pumps are significantly more expensive and complex than vane pumps. They are also more sensitive to fluid contamination and require stricter maintenance and cleaner working environments.
Key comparison points:
Pressure handling: Piston pumps outperform vane pumps in high-pressure applications.
Efficiency: Piston pumps offer better energy efficiency, especially in variable displacement setups.
Cost and complexity: Vane pumps are more economical and easier to maintain.
Noise: Vane pumps are quieter than piston pumps.
Maintenance: Piston pumps require more frequent and detailed servicing.
When deciding which pump to use in a hydraulic system, engineers must consider several operational factors. Below is a detailed comparison of hydraulic vane pumps against gear and piston pumps across key performance areas.
Hydraulic vane pumps are suitable for medium-pressure systems, generally up to 200 bar. Gear pumps operate in a similar pressure range but tend to lose efficiency at higher pressures due to internal leakage. Piston pumps, by contrast, can operate efficiently at much higher pressures—up to and beyond 400 bar—making them ideal for heavy-duty tasks such as metal forging, construction equipment, and industrial presses.
Summary:
Vane pumps: Moderate pressure
Gear pumps: Moderate pressure (less efficient at higher ranges)
Piston pumps: High pressure
Vane pumps excel at producing a smooth and consistent flow, which is crucial in applications requiring precision and repeatability. Gear pumps exhibit slight pulsations, which may affect performance in sensitive equipment. Piston pumps also provide smooth flow but are better suited to large flow volumes under high pressure.
Summary:
Vane pumps: Excellent flow stability
Gear pumps: Minor pulsations
Piston pumps: Good stability under high loads
One of the strongest advantages of vane pumps is their low operating noise. This makes them especially desirable in indoor environments, laboratory settings, or anywhere quiet operation is important. Gear pumps are significantly louder due to the nature of gear interaction. Piston pumps fall somewhere in between, with more noise than vane pumps but less than gear pumps in some designs.
Summary:
Vane pumps: Very quiet
Gear pumps: Noisy
Piston pumps: Moderate noise
Piston pumps are the most efficient, especially when used in systems that benefit from variable displacement. They can adjust their output based on demand, conserving energy and reducing heat generation. Vane pumps offer moderate efficiency, performing well in steady-load environments. Gear pumps are the least efficient at high pressures and can waste more energy due to internal leakage.
Summary:
Vane pumps: Moderate efficiency
Gear pumps: Low efficiency at high pressures
Piston pumps: High efficiency, especially with variable displacement
Vane pumps are relatively easy to maintain. Their simple design allows for quick replacement of worn vanes and seals. Gear pumps are similarly simple and rugged but may wear faster in abrasive or high-speed environments. Piston pumps, although long-lasting under proper care, require the most maintenance and attention to detail. They are also the most sensitive to fluid cleanliness, which can affect their reliability if not properly managed.
Summary:
Vane pumps: Simple maintenance, good longevity
Gear pumps: Easy to service, shorter lifespan in tough conditions
Piston pumps: Complex maintenance, longest life if well cared for
Each type of hydraulic pump shines in different applications:
Vane pumps are ideal for industrial machines like plastic injection molding systems, packaging lines, woodworking machinery, and CNC equipment. Their quiet operation and steady flow make them a strong choice in production environments where medium pressure and reliable performance are needed.
Gear pumps are widely used in agricultural machinery, construction equipment, and other outdoor or mobile systems where ruggedness and simplicity are more important than flow precision or quiet operation.
Piston pumps are best for high-demand applications, such as heavy industrial presses, mining machinery, hydraulic cranes, and mobile equipment that require high-pressure, high-flow performance with advanced control systems.
Choosing the right hydraulic pump involves balancing performance, cost, operating environment, and system needs. Hydraulic vane pumps offer a well-rounded solution, delivering smooth, quiet, and reliable performance for medium-pressure applications. They provide more stable flow and quieter operation than gear pumps, while being more affordable and easier to maintain than piston pumps. For systems with clean hydraulic fluid and moderate pressure requirements, vane pumps are a dependable and efficient choice.
