Home » Products » Vane Pump » PV2R Single Pump » Valuable Yuken PV2R Hydraulic Vane Pump PV2R3-136 Customization Outlet Position

PV2R2-26-F Yuken Hydraulic Pump Yuken Vane Pump

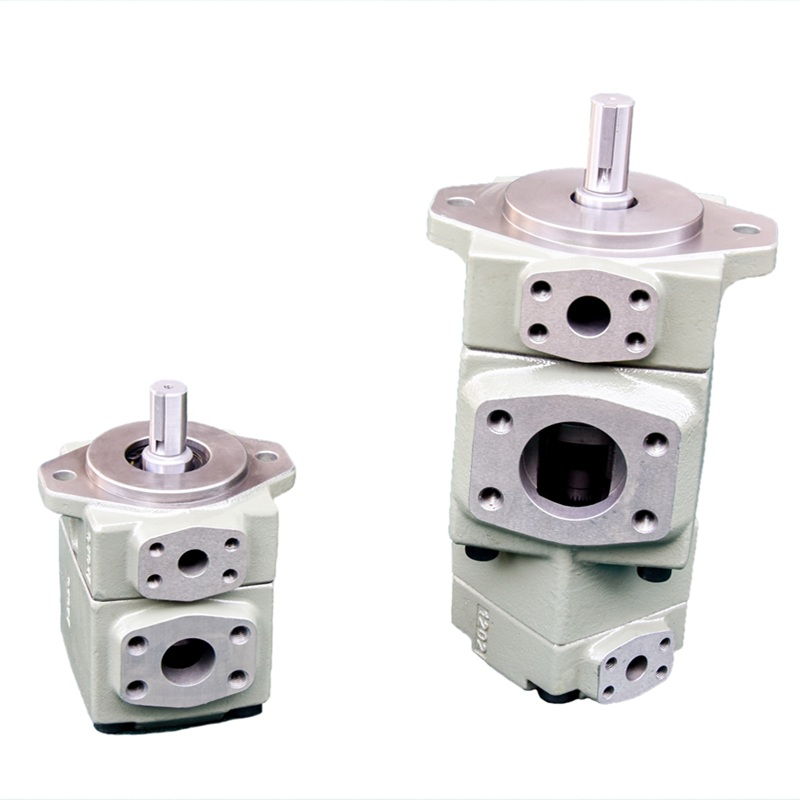

Valuable Yuken PV2R Hydraulic Vane Pump PV2R3-136 Customization Outlet Position

The Yuken PV2R3-136 is a specific displacement variant of the PV2R3 series hydraulic vane pump, designed for low-noise operation and high-pressure resistance. It delivers a theoretical displacement of 135.8 mL/rev, is rated for maximum operating pressures of 17.5 MPa, and can be driven at speeds up to 1200 rpm.


Material:	HT300
Size:	3526.625.5
Color:	Black
Weight:	31.6KG
Availability:



Inquire Add to Basket

Model:
PV2R3
Brand:
Yuken
Code:
8413603190

Product Description

|

Product Description

As an advanced iteration in hydraulic technology, the PV2R series low-noise high-pressure vane pumps synthesize global innovations from leading domestic and international counterparts. Engineered with optimized kinematics, these pumps deliver exceptional volumetric efficiency (>92%), acoustic levels below 70 dB, and pulsation under 3% – significantly outperforming industry benchmarks. Their ISO/SAE-compliant mounting interfaces and modular derivative compatibility enable seamless retrofitting across full specification ranges, driving adoption in CNC machining, polymer processing, precision forging, earthmoving systems, and logistics equipment

| Product Packaging & Delivery

1.The default Brand is "KST",but we can accept your requirement about customizing label.

2.The default package is carton with polyfoam, also we can customize packaging as you require.

3.shipped with pallet.

|

Technical parameters

Series	Displacement	Max pressure MPa					Rotation speed
Model		Working oil			Water based synthetic hydraulic oil		Max	Min
		Particular pressure oil	Antiwear oil	Common oil	Antiwear waterglyco	Sul phosuccinic ester fatty of acid
PV2R3-52	51.5	21	17.5	14	16	14	1800 (1200)	600
PV2R3-60	62.9
PV2R3-66	67.0
PV2R3-76	79.2
PV2R3-85	84.5
PV2R3-94	93.8
PV2R3-116	113.2	17.5	16
PV2R3-125	122.8
PV2R3-136	135.8				14		1200
PV2R3-153	152.8

| Model descriptions

PV2R3

1

-136

-F

-1

-R

-A

Code

series

Displacement code

Mounting type

Shaft type

Direction of rotation

Outlet position

Inlet position

PV2R3

52、60、66、76、85、94、116、125、136、153

F for Flange

1 for major shaft standard

2 for minor shaft

R for Right

L for Left

A for upper

R、B、L

(Outlet port A is set as upper)

A for upper

B for bottom

R for right

L for left

|

Company Profile

| Comment & FAQ

1. What's the minimum order quantity?

A: One set at present.

2. When can the goods be delivered?

A: 2-5 working days after payment for regular models and 5-10 working days for a customized model.

3. Can you accept OEM or ODM?

A: Yes, we can.

4. How to choose suitable equipment?

A: Tell us your requirements, our professional sales will introduce you to the most suitable model.

5. Are your products standard?

A: Yes, our products are international standard.
